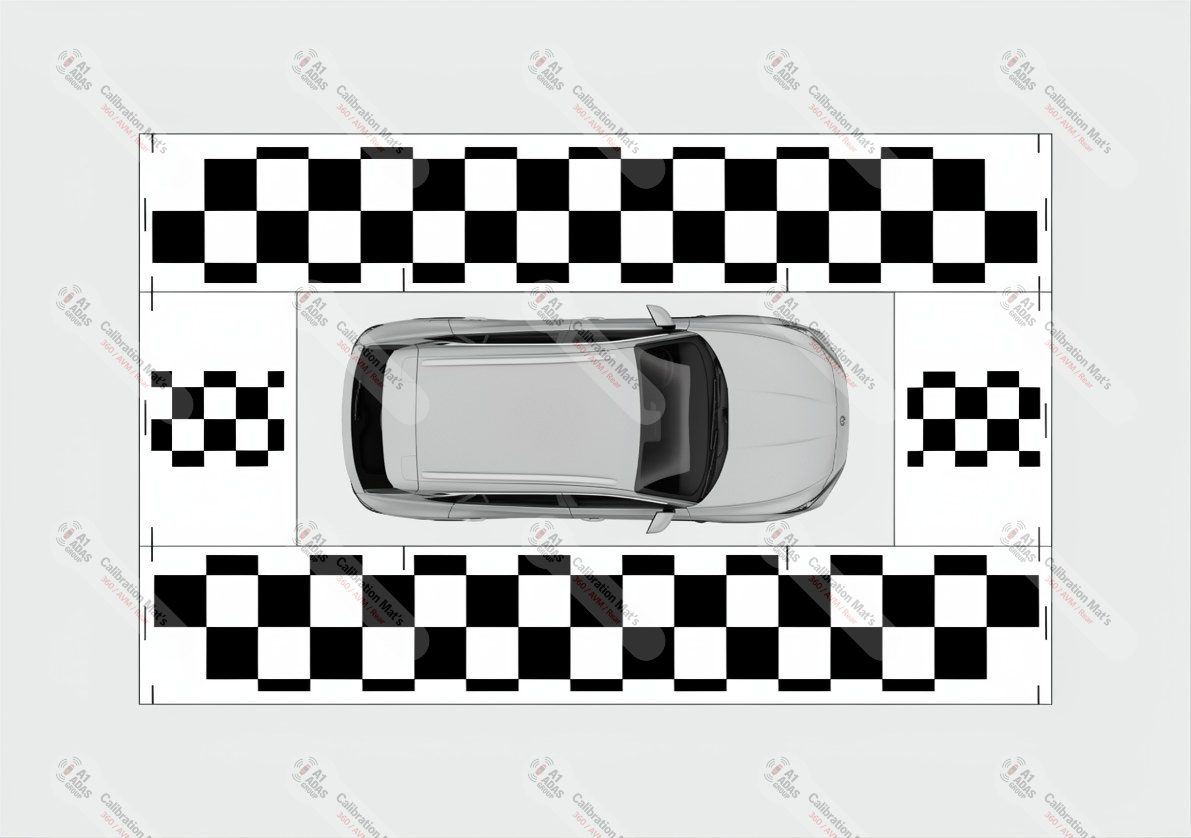

IM 360° Around View Monitor (AVM) Calibration Mats

Our IM AVM Calibration Mats are designed to accurately calibrate the vehicle’s 360° Around View Monitoring (AVM) system. The high-contrast patterns and precision-manufactured dimensional standards allow the AVM system to correctly identify and calibrate the position of each camera, ensuring the correct surround-view image is displayed to the driver. This provides a straightforward, accurate and consistent calibration process.

Compatible Manufacturer

These AVM Calibration Mats are compatible with the following manufacturer:

IM

Precision Manufactured for Accurate AVM Calibration

Every calibration mat is produced using specialised UV non-glare printing technology with advanced fully automated manufacturing processes. This ensures exceptional production accuracy and consistency across every set of mats.

The non-glare finish reduces light reflection and supporting accurate camera calibration in a variety of workshop environments.

Each mat is printed onto durable 120 GSM fabric, providing excellent longevity and reliability while maintaining a lightweight construction suitable for regular transportation and frequent workshop use.

With regular professional use, each set of calibration mats is estimated to have an approximately 3-year lifespan.

Lightweight 120 GSM Calibration Mats

Advantages Over Traditional Heavyweight Vinyl Mats

Designed for practicality, durability and reliable workshop performance, our lightweight 120 GSM calibration mats provide an efficient solution for modern ADAS calibration requirements.

The lightweight fabric construction makes each set easier for technicians to handle, position and transport compared to traditional heavier vinyl alternatives. This helps reduce setup time and improves efficiency within busy workshop environments.

Each set folds neatly into the supplied storage bag, allowing compact storage in service vans, workshops or calibration equipment storage areas. Their portable design also makes carrying multiple manufacturer calibration mat sets significantly easier.

Every mat is printed using high-quality UV solvent inks, providing sharp pattern definition, excellent contrast and long-lasting print durability even with repeated workshop use.

The matte non-glare surface helps reduce unwanted light reflection from modern LED workshop lighting, minimising the risk of calibration errors and supporting accurate, repeatable AVM calibration results.

Key Benefits

• Lightweight 120 GSM material for easy handling and transportation
• Waterproof fabric construction with quick drying properties
• Foldable design with included storage bag
• Compact storage solution ideal for mobile technicians and workshops
• UV solvent printed for excellent durability and image clarity
• Non-glare matte finish helps reduce LED light reflection
• Designed for accurate and repeatable calibration results

Package Includes

• 4 Calibration Mats
• Manufacturer Methods
• Storage Bag
