Mazda 360° Around View Monitor (AVM) Calibration Mats

Our Mazda AVM Calibration Mats are designed to accurately calibrate the vehicle’s 360° Around View Monitoring (AVM) system. The high-contrast patterns and precision-manufactured dimensional standards allow the AVM system to correctly identify and calibrate the position of each camera, ensuring the correct surround-view image is displayed to the driver. This provides a straightforward, accurate and consistent calibration process.

Complete Vehicle Calibration Solution

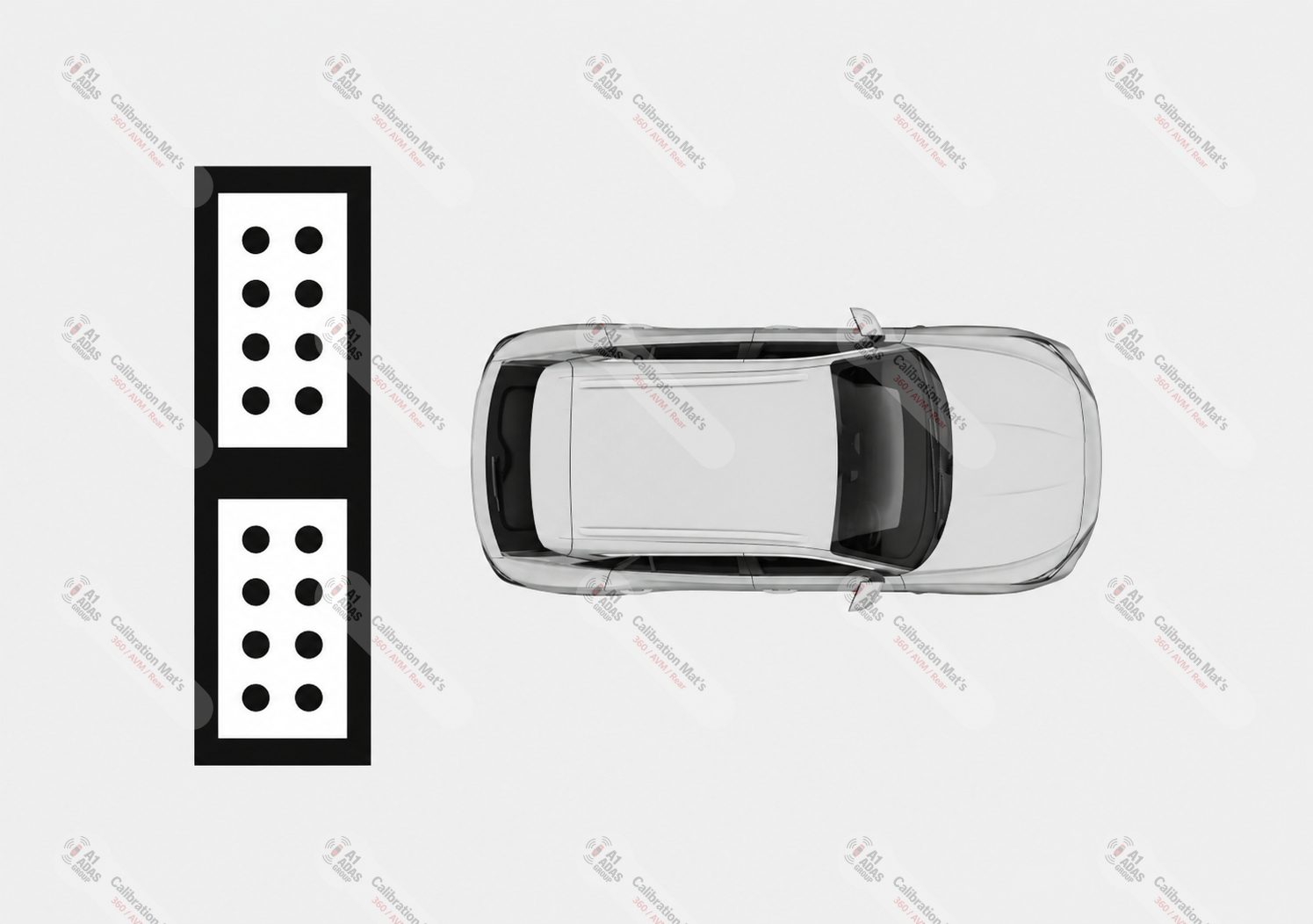

With a set of 2 calibration mats, technicians can complete a full vehicle AVM calibration procedure. During calibration, the mats are repositioned as required to calibrate each respective side of the vehicle, providing a practical and efficient solution for workshop environments.

Compatible Manufacturer

These AVM Calibration Mats are compatible with the following manufacturer:

Mazda

Precision Manufactured for Accurate AVM Calibration

Every calibration mat is produced using specialised UV non-glare printing technology with advanced fully automated manufacturing processes. This ensures exceptional production accuracy and consistency across every set of mats.

The non-glare finish helps minimise unwanted reflections from workshop lighting, allowing the AVM system to accurately identify the calibration patterns and supporting reliable calibration results.

Each mat is printed onto durable 120 GSM fabric, providing excellent longevity and durability while maintaining a lightweight construction suitable for regular transportation and frequent workshop use.

With regular professional use, each set of calibration mats is estimated to have an approximately 3-year lifespan.

Lightweight 120 GSM Calibration Mats

Designed for Efficient Workshop Use

Developed for practicality, durability and reliable workshop performance, our lightweight 120 GSM calibration mats provide an efficient solution for modern ADAS calibration requirements.

The lightweight fabric construction makes each set easier for technicians to handle, position and transport, helping reduce setup times and improving efficiency within busy workshop environments.

The tightly woven waterproof material provides excellent durability and helps protect against everyday workshop conditions, while the quick-drying properties ensure the mats remain practical for regular use.

Each set folds neatly into the supplied storage bag, allowing compact storage in workshops, calibration areas or service vehicles. The lightweight design also makes transporting multiple manufacturer calibration mat sets much easier.

Every mat is printed using high-quality UV solvent inks, providing sharp pattern definition, excellent contrast and long-lasting print durability, even with repeated workshop use.

The matte non-glare surface helps reduce light reflection from modern LED workshop lighting, minimising the risk of calibration errors and supporting accurate, repeatable AVM calibration results.

Key Benefits

• Complete vehicle calibration capability using only 2 mats
• Lightweight 120 GSM material for easy handling and transportation
• Waterproof fabric construction with quick drying properties
• Foldable design with included storage bag
• Compact storage solution ideal for workshops and mobile technicians
• UV solvent printed for excellent durability and image clarity
• Non-glare matte finish helps reduce LED light reflection
• Designed for accurate and repeatable 360° camera calibration
• Compatible with Mazda AVM calibration procedures

Package Includes

• 2 Calibration Mats
• Manufacturer Methods
• Storage Bag
