Topdon Phoenix Elite – Includes 2 Years Software Updates

CONNECT TO THE NEWEST VEHICLES

Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

ALL DATA ON ONE SCREEN

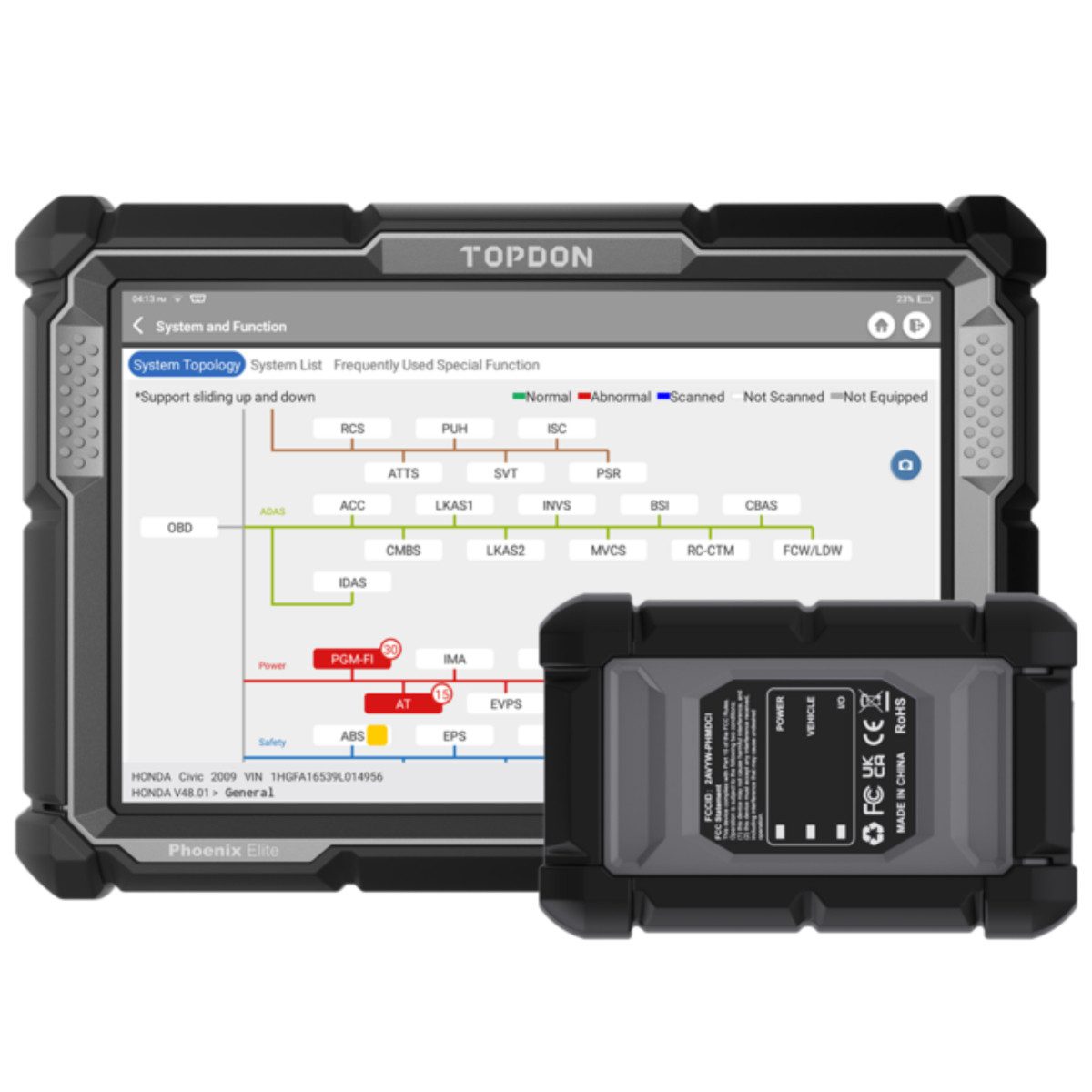

-Topology mapping displays related vehicle systems and CAN network.
-Diagnose communication issues instantly.
-Color-coded mapping of each module’s communication status.
-Offer active tests, special functions, coding, initialization, and memory resets.

GUIDED FUNCTIONS FOR VAG VEHICLES

Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles

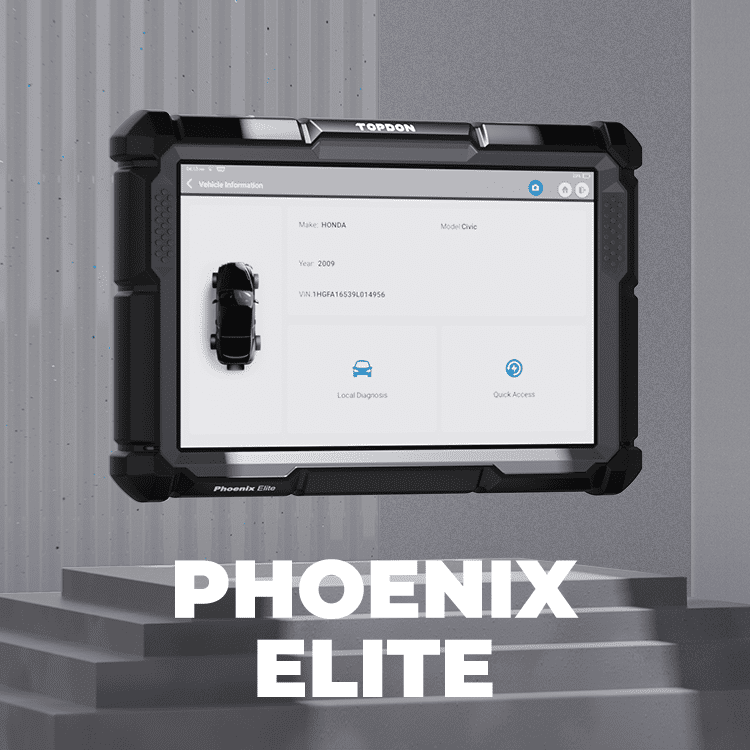

VEHICLE AUTO VIN AND AUTODETECT

The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes

PRE-SCAN AND POST-SCAN REPORTING

The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval. When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle’s clean bill of health.

EXPAND YOUR CAPABILITIES WITH ADAS CALIBRATION

Stepping beyond diagnostics, the Phoenix Elite introduces ADAS capabilities to auto shops. Download the ADAS upgrades and pair with a Phoenix ADAS system to turn your Phoenix Elite into a calibration station, creating a new revenue stream for auto shops.

Screen resolution: 1280×800​

Weight: 1.57kg/3.45lb

​Battery Capacity: 12600mAh

Android version: 10

​CPU: MT6761 Core 4 2.0GHz

​RAM: 4G

​ROM: 64G

Maintenance Functions: 34

Diagnostic Protocols D-PDU/J2534/RP1210

Bus Protocols: CanFD Only

Auto VIN

FCA Secure Gateway

FCA Official Account Subs Fee

​Full-system Diagnostic

Communication: VCI/Bluetooth

Software Languages: 15
